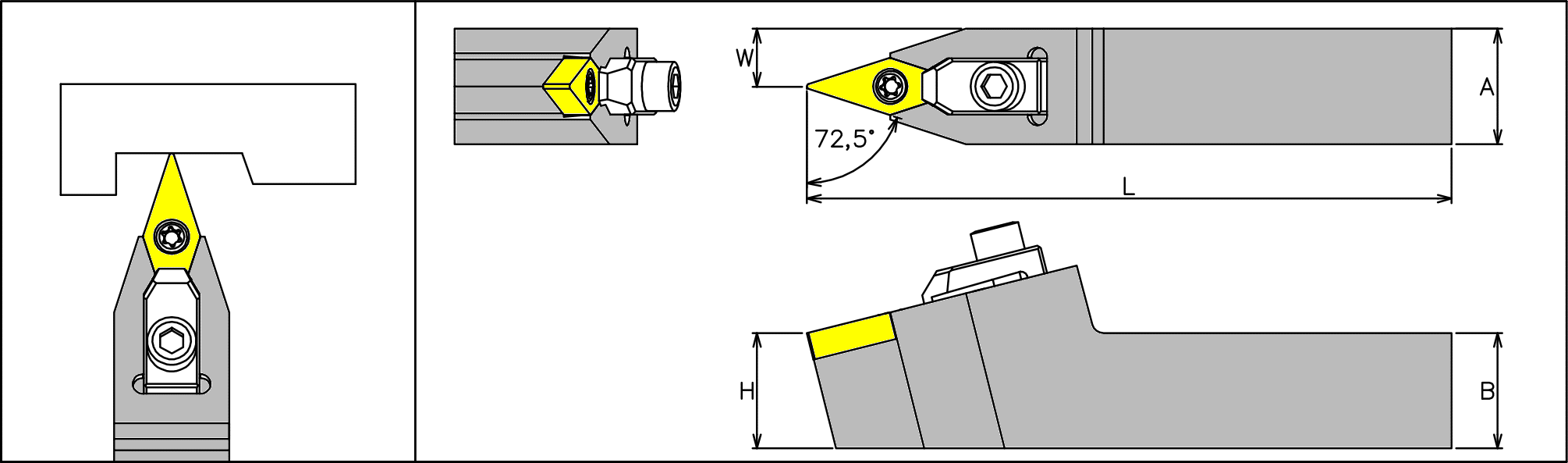

| MVVNN-Multilock TOOL HOLDER |
|---|
| SL.NO | DESCRIPTION | A | B | L | W | H | INSERT | I.SCREW | CLAMP | C.SCREW | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | MVVNN 2020 K12 | 20 | 20 | 125 | 10 | 20 | VNMG12T3-- | TS3008 | SCV06 | CLS08 | LH040/FT10 |
| 2 | MVVNN 2525 M12 | 25 | 25 | 150 | 12.5 | 25 | VNMG12T3-- | TS3008 | SCV06 | CLS08 | LH040/FT10 |
| 3 | MVVNN 3232 P12 | 32 | 32 | 170 | 16 | 32 | VNMG12T3-- | TS3008 | SCV06 | CLS08 | LH040/FT10 |
| 4 | MVVNN 2020 K16 | 20 | 20 | 125 | 10 | 20 | VNMG1604-- | TS3511 | SCV06 | CLS08 | LH040/FT15 |
| 5 | MVVNN 2525 M16 | 25 | 25 | 150 | 12.5 | 25 | VNMG1604-- | TS3511 | SCV06 | CLS08 | LH040/FT15 |
| 6 | MVVNN 3232 P16 | 32 | 32 | 170 | 16 | 32 | VNMG1604-- | TS3511 | SCV06 | CLS08 | LH040/FT15 |
