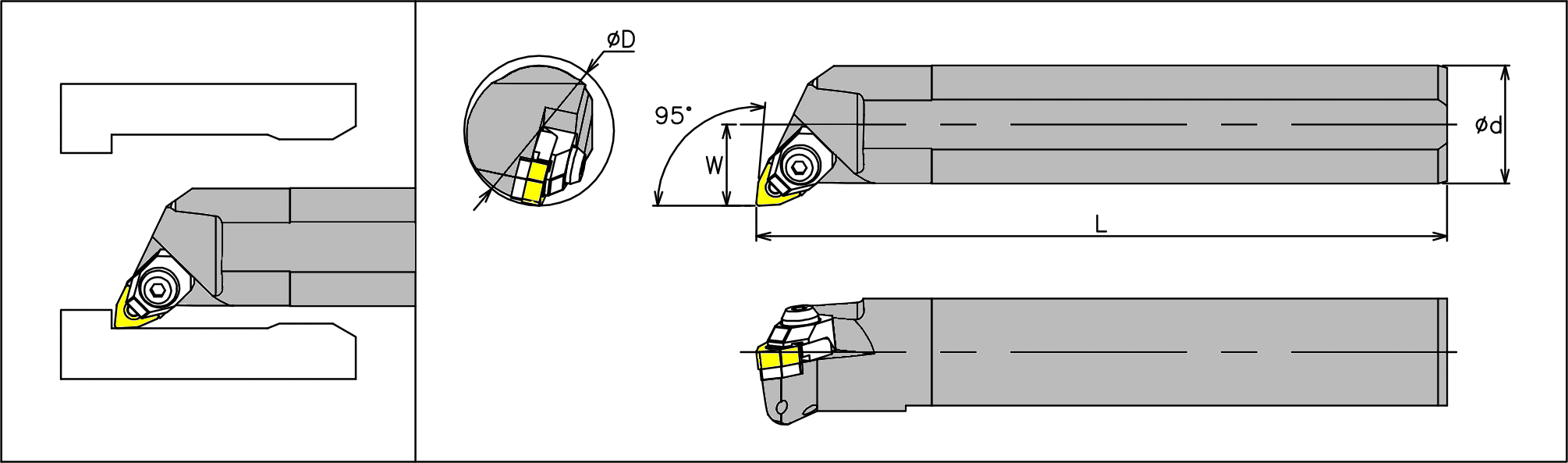

| MWLNR/L Rigid Lock BORINGBAR |
|---|
 |
|---|
| SL.NO | DESCRIPTION | D | d | W | L | INSERT | SHIM | S.SCREW | CLAMP | C.SCREW | WEDGE | SPRING | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | S25R MWLNR/L 06W | 32 | 25 | 17 | 200 | WNMG0604-- | - | MSP09B | RCT20 | CLS13 | RWW01 | RSG01 | LH040/LH025 |
| 2 | S32S MWLNR/L 06W | 40 | 32 | 22 | 250 | WNMG0604-- | WSW14 | MSP09B | RCT20 | CLS13 | RWW01 | RSG01 | LH040/LH025 |
| 3 | S40U MWLNR/L 06W | 50 | 40 | 27 | 350 | WNMG0604-- | WSW14 | MSP09B | RCT20 | CLS13 | RWW01 | RSG01 | LH040/LH025 |
| 4 | S50V MWLNR/L 06W | 63 | 50 | 35 | 400 | WNMG0604-- | WSW14 | MSP09B | RCT20 | CLS13 | RWW01 | RSG01 | LH040/LH025 |
